Mobile System Design

Mobile System Design Interviews §

• What are we being asked to design?
• Who is the user, and how will they use our system?
• What’s the initial number of users? And the expected growth?
• Are we being given an initial design/wireframes, or should we produce them as well?
• Are we designing an MVP or final-product?
• Are we building this from scratch, or can we leverage any existing components? Any existing patterns/architecture we should follow?
• How big is the team who will implement and maintain our system?
• Are we expected to design just the mobile application or other parts of the overall system too (e.g. API)?
• Is it iOS or Android only, or cross-platform? Shall we support smartphones, tablets, both?

Design Requirements §

• Client-side only
• Client-side + API
• Client-side + API + Backend

Don’t forget to gather key functional, non-functional and out of scope requirements.

For example, in the case of Twitter:

• Functional
  • Users should be able to scroll through an infinite list of tweets
  • Users should be able to click on a tweet to see replies
  • Users should be able to like a tweet
• Non-functional
  • Offline support
  • Real-time notifications
  • Optimal bandwidth/CPU usages
• Out of Scope
  • Login/Authentication
  • Sending Tweets
  • Followers/Retweets

Identify Technical Requirements §

• How many users to we expect?
• How big is the engineering team?

Networking §

• REST API? How is it provided and what does it look like?
• Any live updates? Websockets, polling, push notifications - tradeoffs

Security §

• Authentication - how will your design verify who the user of your app is?
• Storing sensitive data - will you save credentials? Access tokens? Refresh tokens? PII? Keychain/KeyStore
• Secure communications - cert pinning, TLS

Availability §

• Will the app support offline mode? If so, what solution will you use? How will you handle going online again?
• Caching for images or other media - what’s the cleanup policy (LRU)

Scalability §

How will you build an app that can be worked on by dozens of engineers?

• Modularisation for features
• Breaking UI into standard components/design systems

Performance §

• Any UI-heavy operations such as animations? How do you ensure no jank?
• How do we load heavy resources like images asynchronously? What are the bottlenecks and challenges of your approach?

Testing §

• Explain your testing strategy - pyramid of tests
• Highlight strength of architecture - how easy is it to test an individual component?
• Use of DI

Monitoring §

• Crash reporting
• Analytics
• Performance monitoring
• Breadcrumbs

Deployment §

How do you forsee the app going live?

• CI/CD pipeline with automated releases
• Leveraging feature flags

High-Level Solution §

• Draw the main screens as boxes, describing the main content
• Go over the flow, adding arrows to represent the user journey
• Add more details to discuss each screen’s composition - main UI elements, reusable components etc

Principal Systems §

(If required)

• Mobile clients
• API services
• Backend apps
• Databases
• Notification services

Define Basic Data Entities §

• User object
• Posts/Stories/Whatever

Describe Primary Endpoints §

• POST v1/auth etc - don’t forget versioning!

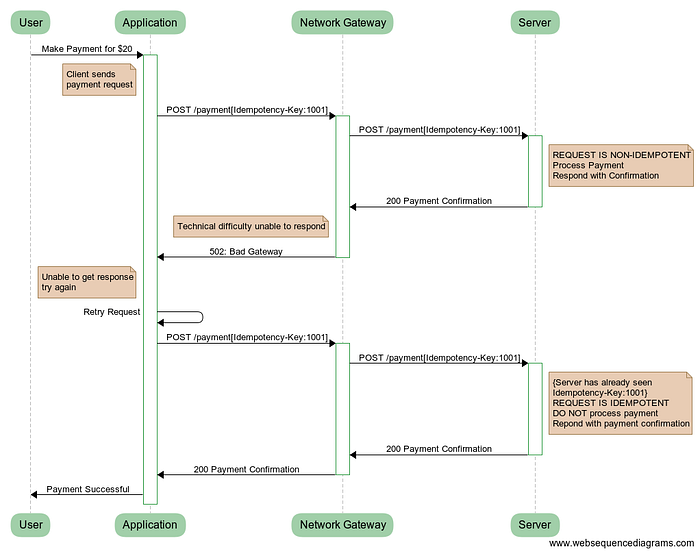

• Idempotency keys - can be a header
  • Cached by server, so subsequent requests with the same key get the same result (or error)
  • Makes sense for POST & PUT & DELETE & PATCH - GET is idempotent anyway
  • See https://miro.medium.com/max/700/1*GhDYXaU9DSNEHXtR0x7GmA.png
• Describe input parameters, expected outputs

Describe Client Architecture §

• Presentation layer
  • MVVM, Coordinator, Activities + Fragments
• Domain layer
  • Use cases to combine data from the user and repositories
• Data layer
  • Repositories to coordinate fetching data from the network, caching, disk etc
• Helper services
  • Notifications
  • Networking
  • Session service for user info
  • Credentials store

Quality of Service §

Assign a QoS to each of your network requests:

• User-critical - should be dispatched as fast as possible, fetching the next page of data in a feed, for instance
• UI-critical - dispatched after user-critical. Fetching thumbnails while scrolling, but could be cancelled if the user scrolls past the target tweet. May be delayed in the case of fast scrolling.
• UI-non-critical - dispatched after UI-critical. High-res images for the feed. Cancelled if the user scrolls past the target tweet.
• Background - should be dispatched after all of the above have finished. This can include posting “likes”, analytics.

Use a priority queue for scheduling network requests and dispatch in the order of their priority. Suspend low-priority requests if the maximum number of concurrent operations is reached and a high-priority request is scheduled.

Deep-Dive §

• Chose the most interesting screen and draw it’s architecture. Cover all layers, from UI components to ViewModels, repositories, endpoints, network layer, local store etc
• Trace the dependencies from the caller
• Walk over the flow - what does the user see at every step? Don’t forget view states! Loading, Error, Data, No Data
• Think about the most challenging parts
  • Real-time updates
  • Image caching
  • Reusing data
  • Buffering requests
